Waterproofing: More than just a defense line, it's a "lifeline" for equipment in harsh environments.

The Unseen Guardian: A Deep Dive into Professional Waterproof Cables

To many, a waterproof cable is simply an ordinary wire wrapped in thick rubber. However, when outdoor LED screens shine continuously in torrential rain, when automated cleaning equipment operates stably amidst splashing water, and when deep-sea probes withstand water pressure from hundreds of meters deep, what supports their normal operation is a precision-engineered waterproof connection system. It isolates far more than just water; it protects against the deadly threats to electrical signals posed by moisture, corrosion, dust, and physical damage.

Product In-Depth Analysis: Safety Begins with "Microscopic" Design

True professional-grade waterproof cables rely on a systematic approach to protection from the inside out.

Core Conductor and Insulation:

Utilizing high-purity tin-plated copper wire, it effectively resists oxidation and ensures long-term conductivity stability. The primary insulation layer uses a high-strength modified elastic material to tightly wrap the conductor, providing the first line of electrical and mechanical protection.

Key Waterproof Fortress:

The "waterproof soul" of the cable lies in its multi-layered shielding and filling structure. Waterproof paste or water-resistant yarn is used to fill the gaps between the cable cores, preventing moisture penetration longitudinally. The combination of aluminum foil Mylar tape and high-density braided copper mesh provides both radial waterproofing and all-around electromagnetic interference (EMI/RFI) shielding.

Outer Sheath Armor:

The outer sheath is typically made of polyurethane (PUR) or high-quality PVC. PUR is particularly outstanding, possessing excellent abrasion resistance, oil resistance, hydrolysis resistance, and tear resistance. It can withstand frequent bending and physical impacts under complex operating conditions, providing long-term protection for the internal structure.

Key Indicators:

IP Protection Rating:

IP67 (water immersion) and IP68 (continuous immersion) are basic requirements. Professional applications require specific water depth and duration parameters.

Voltage and Temperature Resistance:

The rated voltage must be higher than the actual operating voltage, and the temperature range (e.g., -40℃ to 105℃) must cover the limits of the application environment.

Usage Tips and Installation Art: Achieving 100% Protection Effectiveness

Even with top-quality cables, incorrect installation can render protection ineffective. Correct selection and proper use are equally important.

Three key elements for accurate cable selection:

• Environmental Matching: Select cables with appropriate protection ratings and materials based on the type of water (clean water, oil, chemicals), pressure, and temperature.
• Electrical Matching: Select conductors with sufficient cross-sectional area based on equipment power, current, and voltage, allowing for a safety margin to avoid overload and overheating.

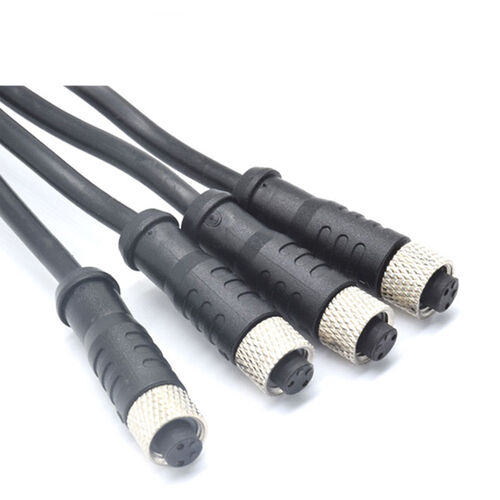

• Connector Matching: Waterproof cables must be used with waterproof connectors of the same protection rating (IP68), ensuring that their interface standards (e.g., M8, M12) and pin definitions are completely consistent.

Four Principles of Professional Installation:

1. Sealing: Ensure all O-rings are intact and in place during connector installation, and tighten strictly according to the torque specified in the instructions to create a uniform pressure seal.
2. Stress Relief: Use cable clamps or stress-relieving bends at the connector inlet to prevent direct external force on the electrical connection point.
3. Route Planning: Avoid sharp bends and continuous tension during installation. Use cable ties at fixed intervals to prevent damage to the sheath due to long-term friction.
4. Regular maintenance: For detachable connections, it is recommended to regularly check the elasticity of the seals, the presence of condensation or corrosion at the joints, and perform functional tests.

Conclusion:

An excellent waterproof cable is the culmination of design wisdom and manufacturing craftsmanship. Maximizing its performance depends on systematic and correct selection and meticulous installation. It silently protects not only the path of current but also the stable operation and lifespan of equipment in harsh environments.
