Home /Products/American Wire Harness/2 Pin AC Power Cable Japan Plug 2 Prong PSE Approved 0.75mm2

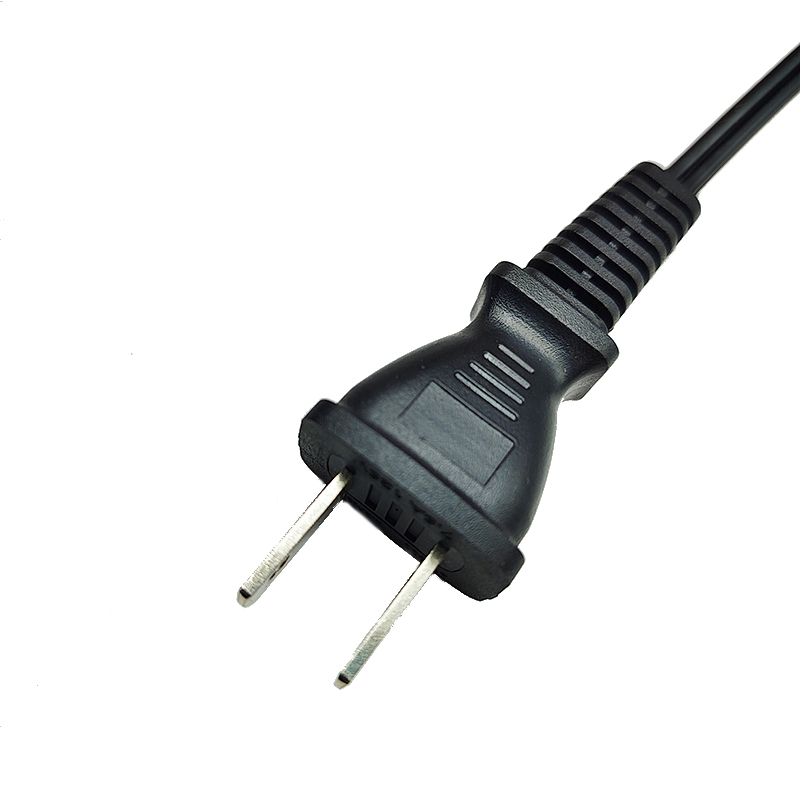

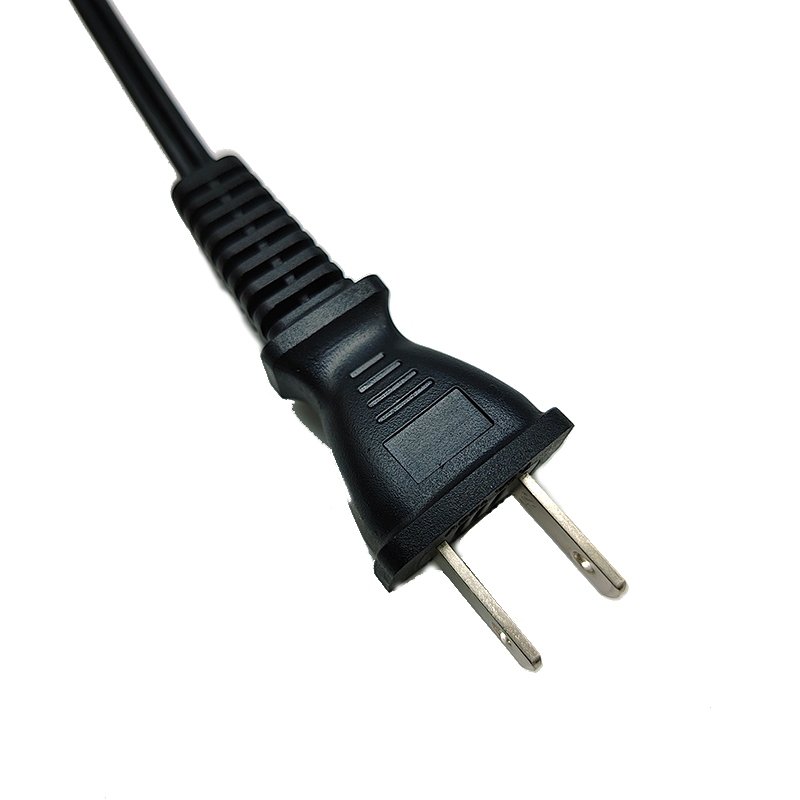

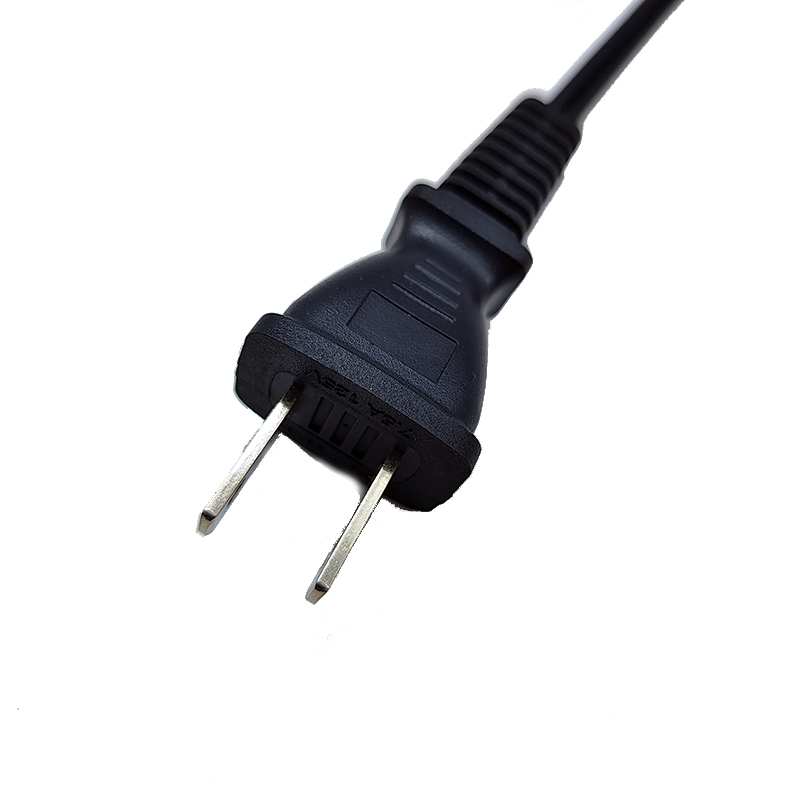

2 Pin AC Power Cable Japan Plug 2 Prong PSE Approved 0.75mm2

100 sets
MOQ
0.3 USD -2 USD
Price
2 Pin AC Power Cable Japan Plug 2 Prong PSE Approved 0.75mm2
Features Gallery Product Description Chat Now
Features
Specifications
Conductor Material: Pure Copper
Application: Consumer Electronics Products
Insulation Material: Rubber Line
Color: Black
Rated Voltage: 130V
Warranty: 3-year Warranty
Personalized Services: OEM，ODM
Highlight:

PSE approved Japan power cord

,

2 pin Japanese AC cable

,

0.75mm2 Japan power cable
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: kenhon
Certification: CE, RoHS, UL, ISO, BASEC，SAA，VDE, ENEC,KC
Model Number: EU Power Cable
Payment & Shipping Terms
Packaging Details: 10*10*10
Delivery Time: 7-15 days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: Can produce 10 million sets of wire harnesses annually
Product Description
Japan 2-Pin AC Power Cord with PSE Certification
Japanese JIS C 8303 Type A Power Plug: Compliant 2-Pin Electrical Connector for 100V Devices
Engineered to meet rigorous Japanese Industrial Standards (JIS C 8303), the Type A two-pin plug delivers safe and efficient power connectivity for 100V electrical systems in Japan and compatible regions. Its non-polarized, parallel flat-blade design ensures universal compatibility with Japanese outlets, supporting a wide range of electronics and small appliances that do not require grounding.
Core Features & Technical Advantages
Standards Compliance & Safety
  • JIS C 8303 Type A Design: Precision-engineered to meet Japanese dimensional and safety requirements
  • Non-Polarized Blades: Two identical flat pins for effortless insertion
  • Certified Safety: Adheres to Japan's mandatory PSE certification for electrical protection
Durable Construction & Performance
  • High-Conductivity Blades: Brass or copper construction minimizes energy loss
  • Flame-Retardant Housing: PVC or polycarbonate housing withstands temperatures from -20°C to 60°C
  • Secure Connection: Blade design ensures firm contact with outlet terminals
Electrical Specifications & Compatibility
  • Voltage/Current Rating: Rated for 125V AC, 15A, aligned with Japan's 100V system
  • Device Compatibility: Ideal for Class II (double-insulated) appliances
  • Cable Options: Compatible with SVT or H03VV-F cables, 18-16 AWG (0.75mm²-1.5mm²)
Technical Specifications
Parameter Specifications
Plug Standard JIS C 8303, Type A (non-polarized, 2-pin)
Rated Voltage/Current 125V AC, 15A
Maximum Power 1,500W (at 125V)
Blade Dimensions 12.7mm long, 4.8mm wide, 1.7mm thick, 12.7mm spacing
Operating Temperature -20°C to 60°C
Safety Certifications PSE (Japan), cULus/UL (optional), RoHS
Cable Type SVT, H03VV-F, or equivalent
Conductor Gauge 18-16 AWG (0.75mm²-1.5mm²)
Standard Length 1.5m, 1.8m, 2m, 3m, 5m (customizable)
Housing Material PVC or polycarbonate (flame-retardant)
Competitive Advantages
  • Market Compliance: Full JIS and PSE certification ensures seamless market entry into Japan
  • Rapid Supply Chain: Lead times of 10-20 days for standard orders
  • Proven Reliability: Robust design ensures a service life of 5+ years
Applications
  • Consumer Electronics: Chargers for laptops, phones, tablets; audio/video equipment
  • Household Appliances: Desk lamps, electric shavers, low-wattage hair dryers
  • Office & Industrial Equipment: Printers, scanners, monitors, and low-to-medium-power tools
Why Choose This Plug?
Guaranteed compatibility with Japanese outlets, safety assurance through PSE certification, lightweight practical design, and turnkey sourcing solution for businesses targeting the Japanese electronics market.
Keywords: JIS C 8303 Type A plug, Japanese 2-pin power connector, PSE certified plug, 100V Japan power cord, non-polarized flat blade plug, JIS standard electrical plug
