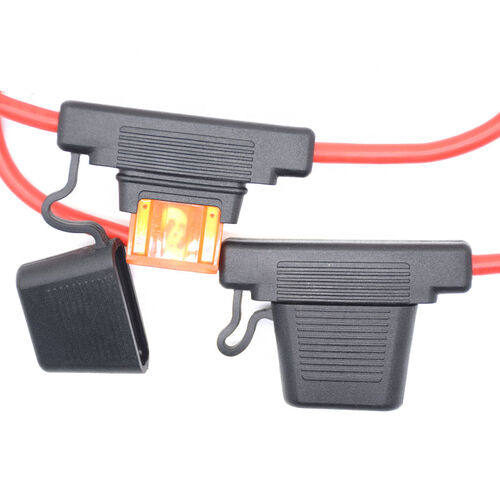

Automotive fuse boxes: the "guardian" and "command center" of the electrical system.

When headlights suddenly go out or power windows fail to operate, most car owners' first reaction is to check the bulbs or switches, rarely noticing the unassuming plastic box in the corner of the dashboard or engine compartment—the car's fuse box. This module, integrating dozens of miniature fuses and relays, is actually the "nerve center" and "safety gate" of the entire vehicle's electrical system. It silently undertakes two core missions: intelligently distributing electrical energy and implementing circuit protection.

A high-quality fuse box is far more valuable than its plastic shell. It is a combination of precision electrical engineering, materials science, and thermal management.

The substrate is made of glass fiber reinforced nylon (PA66-GF), possessing high strength, high flame retardancy (typically reaching UL94 V-0 rating), and excellent dimensional stability, preventing deformation under the severe temperature differences in the engine compartment.

Internal copper alloy or silver-plated copper terminals are precision stamped to ensure low-resistance, high-stability contact with the fuse pins, reducing the risk of overheating from the source.

A well-designed cavity and airflow system effectively disperses the heat generated by relays and fuses during operation, preventing localized high temperatures from accelerating aging.

• Miniature Chip Fuses: Protect individual low-to-medium power circuits (e.g., audio systems, reading lights), offering fast response and precise characteristic curves.
• High-Current Fuses (e.g., MIDI/MAXI): Protect high-power loads such as fans and ABS pumps, capable of withstanding larger short-circuit currents and continuous loads.
• Intelligent Relays: More than just switches, they integrate logic control. For example, headlight relays only connect after the ignition switch signal triggers, preventing accidental operation.

Inferior fuse boxes often use recycled plastic with thin terminal plating and impure materials. Over time, the plastic becomes brittle and cracks, and the terminals oxidize, increasing contact resistance. This can lead to malfunctions, overheating, melting, or even vehicle fires.

When replacing fuses, always adhere to the principle of using the same ampere (A). Never use fuses with higher ampere ratings or temporarily replace them with copper wire. If the fuse blows again after replacement, it indicates an overload or short circuit fault in the circuit, requiring systematic troubleshooting rather than repeated replacements.

Regularly (ideally every six months or before long-distance travel), visually inspect the fuse box cover's seal for damage, and check for water stains, dust accumulation, or green copper rust on the terminals. These are common causes of poor contact and intermittent faults.

1. Step 1: Location. Using the vehicle's instruction manual or the circuit diagram inside the fuse box, quickly locate the fuse and relay corresponding to the faulty device.
2. Step 2: Testing. Use a multimeter in continuity mode or a fuse tester with built-in probes to test. A more professional method is to measure the voltage drop across the fuse. Normally, it should be close to 0V; if it exceeds 0.1V, it indicates excessive contact resistance.
3. Step 3: Analysis. If the fuse is intact but the device does not work, the corresponding relay may be faulty. This can be determined by listening to its operating sound or swapping with a relay of the same model.

As automotive electronic architecture evolves towards domain controllers, cutting-edge intelligent fuse boxes have emerged. Integrating current sensors and microprocessors, they can monitor the load of each circuit in real time, send warning messages to the dashboard via the vehicle network (CAN/LIN), and even implement software reset protection, upgrading passive protection to proactive intelligent energy management.

The automotive fuse box, this silent "guardian," bears the heavy responsibility of ensuring the electrical safety of the entire vehicle through its precise design. Understanding its principles and mastering its maintenance techniques not only allows for quick crisis resolution in the event of a fault but also provides deep protection for your vehicle's electrical system. Choosing reliable fuse box products is equivalent to building a robust "electrical firewall" for your vehicle.
