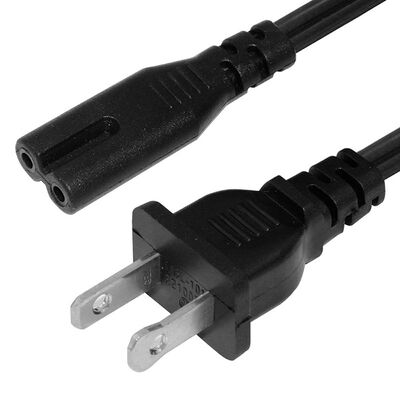

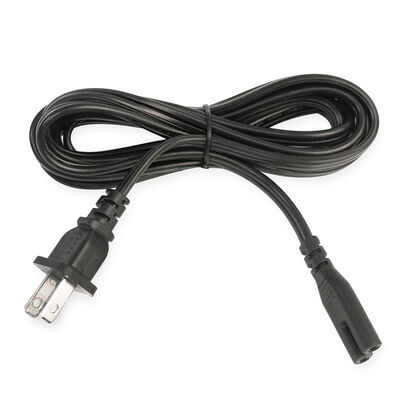

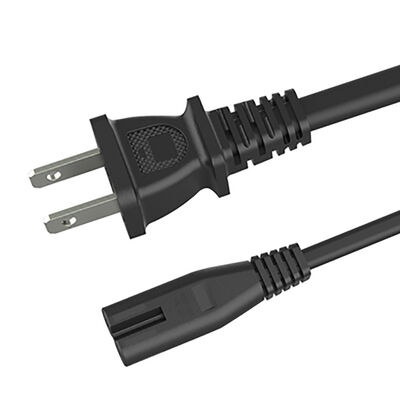

Japanese standard power cord 2 Flat Poles PSE Certified Power Plug Commercial Use Black 1.5M Cable 7/12/15A Extension Cord

100 sets
MOQ
0.3 USD -2 USD
Prijs
Japanese standard power cord 2 Flat Poles PSE Certified Power Plug Commercial Use Black 1.5M Cable 7/12/15A Extension Cord
Kenmerken Galerij Productomschrijving Praatje Nu
Kenmerken
Specificaties
Materiaal geleider: puur koper
Sollicitatie: wasmachine
Isolatie materiaal: Teflon kabelboom
Kleur: Zwart
Nominale spanning: 120V
Garantie: 3 jaar garantie
Gepersonaliseerde diensten: OEM
Markeren:

Japanese standard power cord PSE certified

,

2 flat poles power plug commercial

,

1.5M extension cord 7/12/15A
Basis informatie
Plaats van herkomst: Shenzhen, Guangdong, China
Merknaam: kenhon
Certificering: CE, RoHS, UL, ISO, BASEC，SAA，VDE, ENEC,KC
Modelnummer: Japans standaard netsnoer
Betalen & Verzenden Algemene voorwaarden
Verpakking Details: 10*10*10
Levertijd: 7-15 dagen
Betalingscondities: L/C, D/A, D/P, T/T
Levering vermogen: Kan jaarlijks 10 miljoen sets kabelbomen produceren
Productomschrijving
Japanese Standard Power Cord - 2 Flat Poles PSE Certified
This Japanese-compliant AC power cord is engineered to meet all regulatory requirements for supplying power to electronic devices within Japan. Manufactured in precise alignment with JIS C 8303 industry standards, it features compulsory PSE certification for legal distribution in the Japanese market.
Key Features and Benefits
  • PSE & JET Certified - Bears the diamond PSE mark, verified through Japan's comprehensive 33-test safety evaluation
  • Japanese Electrical System Compatibility - Designed specifically for Japan's 100V/125V, 50Hz/60Hz power supply
  • Type A Plug Configuration - Features two flat, parallel pins (19mm spacing, 17mm length) with nickel-plated brass contacts
  • Versatile Connectors - Appliance-side accepts various IEC 60320 connectors (C7, C13, C19) for global compatibility
  • Premium Construction - High-purity copper conductors with flame-retardant PVC or rubber insulation
  • Durable Design - PBT or ABS plastic plug body withstands thousands of mating cycles
Technical Specifications
Parameter Specifications
Product Designation Japanese-Compliant AC Power Cord (JIS C 8303)
Governing Standards JIS C 8303, IEC 60320, PSE Certified
Rated Voltage 125V AC (for Japan's 100V system)
Rated Current 7A, 12A, and 15A variants available
Plug Type Type A: 2-pin ungrounded
Conductor Material Pure Copper / Tinned Copper
Conductor Gauge 0.75 mm², 1.25 mm², 2.0 mm² (16-14 AWG)
Insulation/Sheathing Flame-Retardant PVC, Rubber, or TPE
Operating Temperature -25°C to 60°C (PVC), up to 105°C for higher grades
Standard Length 1.5M (custom lengths available)
Standard Colors Black or White
Competitive Advantages: Streamlined market access with PSE certification, elevated safety through premium materials, flexible customization options, and cost-effective volume pricing.
Primary Applications
Consumer electronics including televisions, audio systems, desktop computers, monitors, printers, and gaming consoles. Suitable for both household gadgets and industrial machinery.
label:

3 prongs wisselstroomkabel

Desktop-stroomkabel

AC-stroomkabel
