Name: Japanese standard power cord Two Plug With Ground Wire Tail End Power Cord Japan Power Cord Three Core Plug
Brand: Kenhon Electronics CO.,LTD.
SKU: Japans standaard netsnoer
Price: 0.30 USD
Availability: InStock

Kenmerken Galerij Productomschrijving Praatje Nu

Kenmerken

Specificaties

Materiaal geleider: puur koper

Sollicitatie: Airconditioner

Isolatie materiaal: PVC

Kleur: Zwart

Nominale spanning: 230V

Garantie: 3 jaar garantie

Gepersonaliseerde diensten: ODM

Markeren:

Japanese standard power cord with ground wire

Japan power cord three core plug

two plug power cord tail end

Basis informatie

Plaats van herkomst: Shenzhen, Guangdong, China

Merknaam: kenhon

Certificering: CE, RoHS, UL, ISO, BASEC，SAA，VDE, ENEC,KC

Modelnummer: Japans standaard netsnoer

Betalen & Verzenden Algemene voorwaarden

Verpakking Details: 10*10*10

Levertijd: 7-15 dagen

Betalingscondities: L/C, D/A, D/P, T/T

Levering vermogen: Kan jaarlijks 10 miljoen sets kabelbomen produceren

Galerij

Japanese standard power cord Two Plug With Ground Wire Tail End Power Cord Japan Power Cord Three Core Plug

Productomschrijving

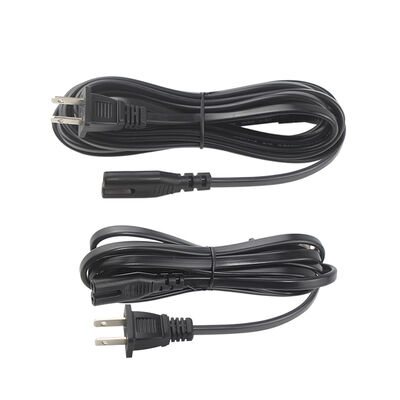

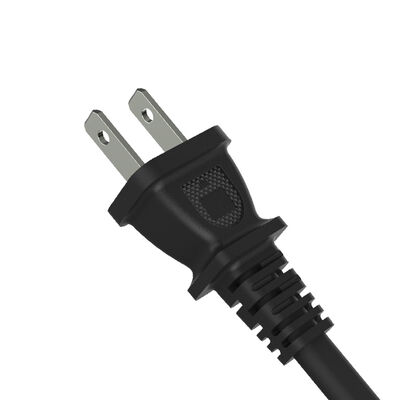

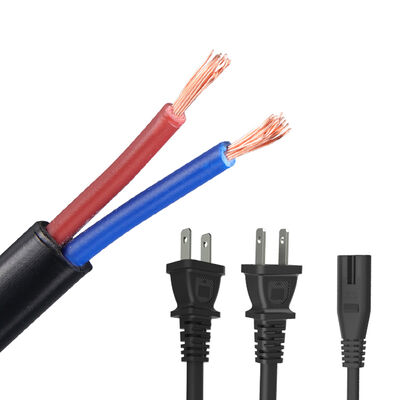

Japanese Standard Power Cord - Two Plug with Ground Wire

This Japan Standard Power Cord is an AC power cable manufactured to fully meet regulatory requirements for the Japanese marketplace and electronic devices. Produced in exact compliance with JIS C 8303 specification, it carries the obligatory PSE (Product Safety of Electrical Appliance & Materials) accreditation, ensuring secure operation on Japan's distinctive 100V power network.

Key Features & Benefits

PSE & JET Approved: Displays the diamond PSE symbol, confirming successful completion of Japan's rigorous 33-test safety program
Complete Standards Compliance: Meets JIS C 8303 norms and satisfies worldwide environmental regulations including RoHS, REACH, and PAHS
Optimized for Japanese Electrical Environment: Specifically tailored for Japan's 100V/125V, 50Hz/60Hz power source
Premium-Grade Wiring: Employs cables of 99.96%+ purity copper or tinned copper to reduce power loss
Strong Protective Sheathing: Fire-retardant PVC (UL94 V-0 classified) or rubber for outstanding defense against wear
Sturdy Plug Body: Made from resilient PBT or ABS polymer for longevity over thousands of connection cycles

Technical Specifications

Parameter	Specifications
Product Name	Japan Standard Power Cord (JIS C 8303 Conformant)
Applicable Standards	JIS C 8303, IEC 60320 (for connectors), PSE Accreditation
Voltage Rating	125V AC (for application on Japan's 100V network)
Current Rating	Models for 7A, 12A, or 15A accessible
Plug Type (Japan Side)	Type A: 2-pin, ungrounded. Type B: 3-pin, grounded.
Connector Type (Device Side)	Customizable: IEC C5, C7, C13, C14, C15, C19, C20, etc.
Wire Material	Pure Copper / Tinned Copper
Wire Thickness	0.75 mm², 1.25 mm², 2.0 mm² (or 16-14 AWG equivalents)
Operating Temperature Range	-25°C to 60°C (PVC), to 105°C for superior grades
Cord Length	Standard: 1.5m, 1.8m, 2.0m, 3.0m. Completely customizable.

Market Advantages: Assured market entry with PSE accreditation, enhanced safety and reliability through premium components, flexible design customization options, and cost-competitive pricing for volume purchases.

Primary Applications

Televisions

Audio Systems

Personal Computers

Displays & Monitors

Printers

Video Game Consoles

Industrial Equipment

Office Electronics
