M8 Waterproof Wire Harness Straight Right Angled 3pin 4pin Male Female Metal Screw

100 sets
MOQ
0.3 USD -3 USD
Price
M8 Waterproof Wire Harness Straight Right Angled 3pin 4pin Male Female Metal Screw
Features Gallery Product Description Chat Now
Features
Specifications
Conductor Material: Pure Copper
Application: Electric Bicycle
Insulation Material: PVC
Color: White And Black
Rated Voltage: 220V
Warranty: Three-year Warranty
Personalized Services: Supports OEM Or ODM Services
Highlight:

M8 Waterproof Wire Harness

,

Straight Right Angled Waterproof Wire Harness

,

3pin Male Female Wire Harness
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: kenhon
Certification: UL,CE certification
Model Number: m8 metal waterproof plug
Payment & Shipping Terms
Packaging Details: 10*10*10
Delivery Time: 7-15 days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: Can produce 10 million sets of wire harnesses annually
Product Description

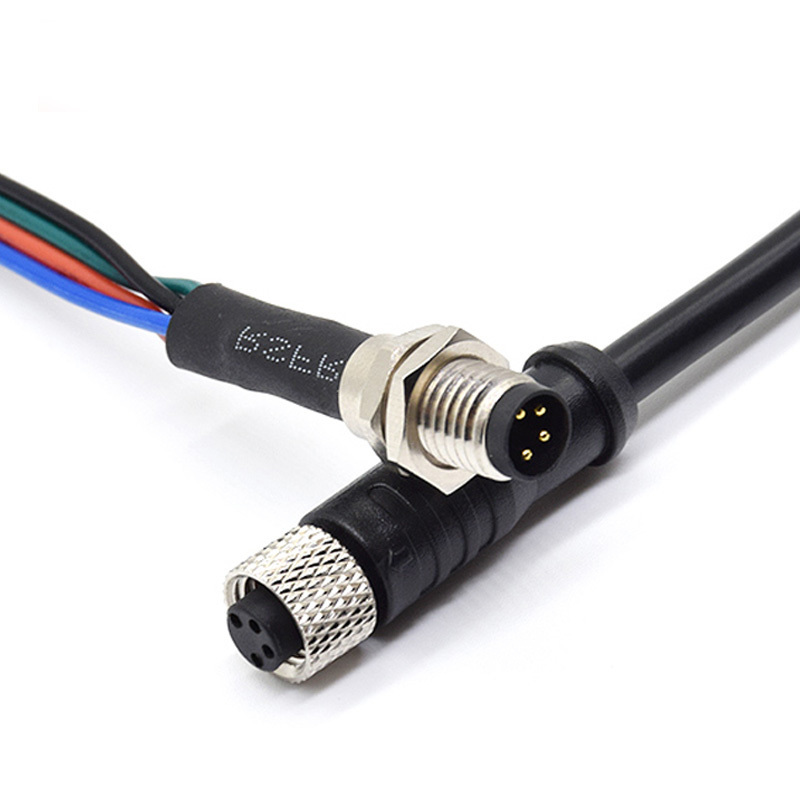

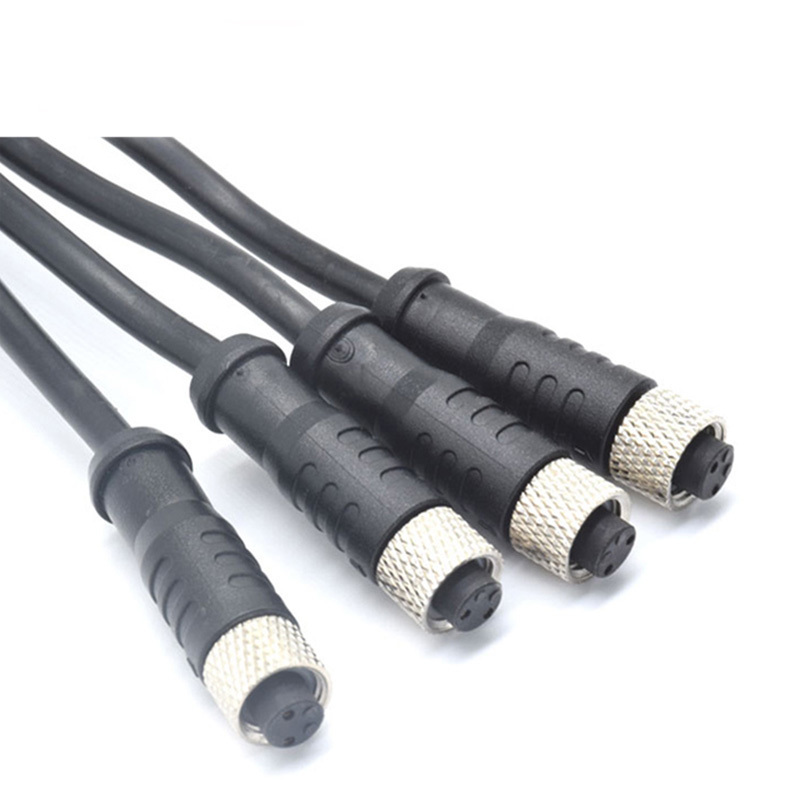

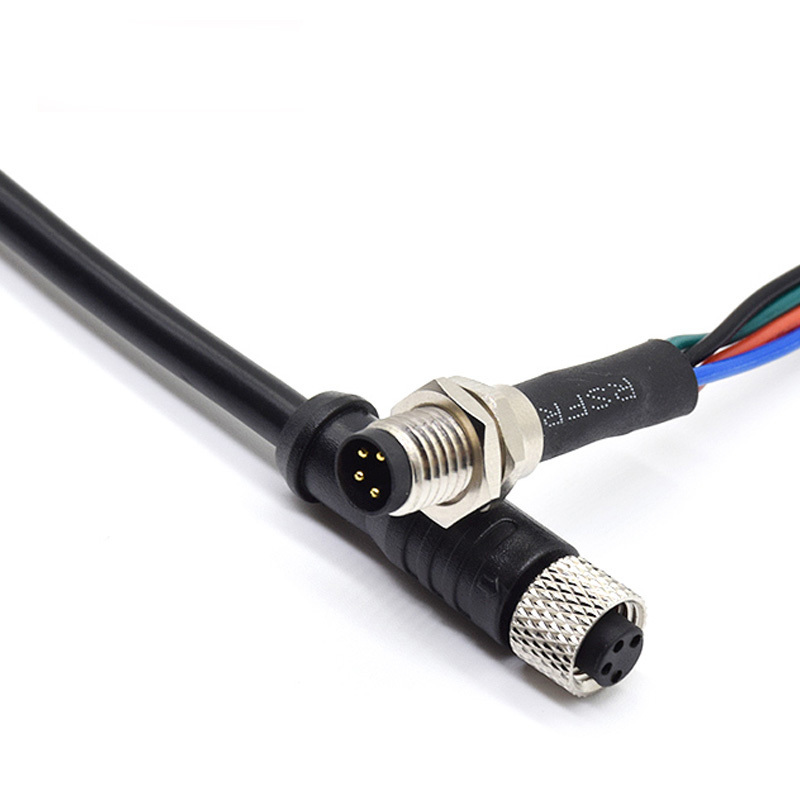

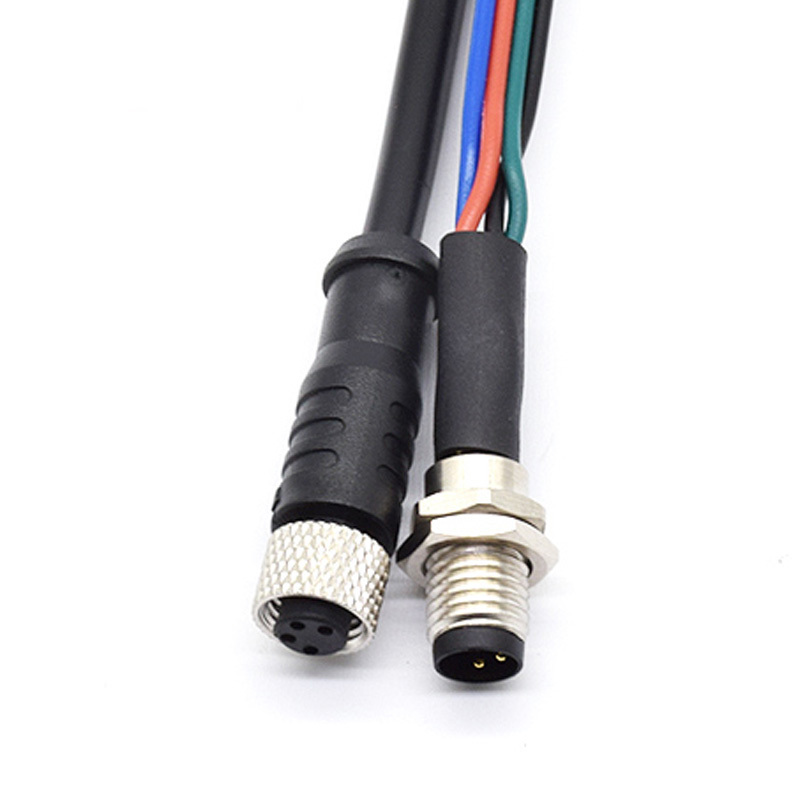

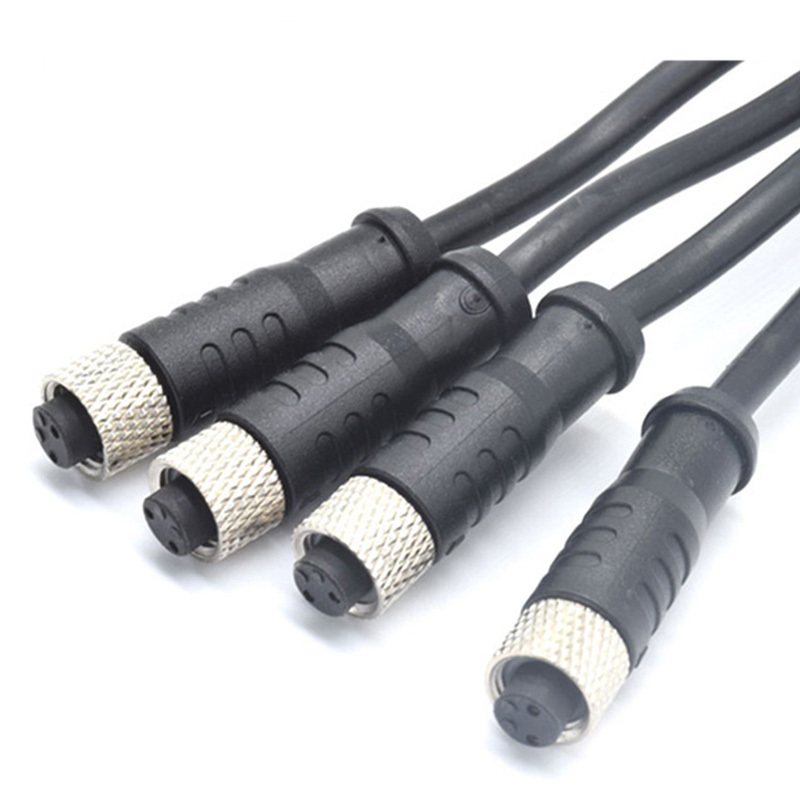

M8 Waterproof Connector - Straight & Right Angled Back Mount Plug
Available in 3-pin and 4-pin configurations with male and female metal screw connections, designed for industrial automation, automotive systems, and harsh environments.
Compliant with IEC 61076-2-101 and EN 60529 standards. Features IP67/IP68 protection for reliable signal and power transmission in demanding conditions including vibration, moisture, chemical exposure, and extreme temperatures.
Durable Construction
  • Housing Material: High-strength brass or stainless steel with electroplating (nickel/zinc) for superior corrosion resistance
  • Sealing Technology: EPDM rubber gaskets and O-ring seals achieve IP67/IP68 ratings (tested at 1.5m submersion for 2 hours)
  • Thread Locking: M8*1 threaded interface ensures secure connections under vibration
Electrical Performance
Specification Rating
Voltage/Current 60V/4A (max)
Insulation Resistance ≥100 MΩ
Contact Resistance <3mΩ for minimal signal loss
Operating Temperature -40°C to +105°C
Storage Temperature -50°C to +125°C
Customizable Design Options
  • Pin Configuration: 2-8 pins (A/B/D/Coded) for flexible applications
  • Cable Compatibility: Supports AWG 24-28 cables (4-6mm diameter) with pre-attached or field-wiring options
  • Termination Types: Welding, screw clamping, or quick-lock mechanisms
Certifications & Compliance
CE, RoHS, UL, IEC 61800-5-2, and ISO 9001 certified. REACH-compliant for eco-friendly applications.
Industrial Applications
Industrial Automation
Sensor connections in robotic arms, CNC machines, and PLC systems
Transportation
Automotive lighting, EV charging ports, and battery management
Renewable Energy
Solar inverter monitoring and wind turbine control
Medical Devices
Waterproof connections for portable diagnostic equipment
Outdoor Equipment
LED street lighting, agricultural machinery, and marine electronics
