Home /Products/Waterproof Wire Harness/Electric Bike Waterproof Wire Harness M8 3Pin Male Female LED Strip

Electric Bike Waterproof Wire Harness M8 3Pin Male Female LED Strip

100 sets
MOQ
0.3 USD -2 USD
Price
Electric Bike Waterproof Wire Harness M8 3Pin Male Female LED Strip
Features Gallery Product Description Chat Now
Features
Specifications
Conductor Material: Pure Copper
Application: Sensor
Insulation Material: Nylon
Color: Yellow
Rated Voltage: 220V
Warranty: 3-year Warranty
Personalized Services: Supports OEM Or ODM
Highlight:

M8 3 pin Wire Harness

,

electric bike waterproof wire harness

,

LED strip waterproof cable connector
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: kenhon
Certification: UL,CE certification
Model Number: Waterproof Wire Harness M8 3Pin
Payment & Shipping Terms
Packaging Details: 10*10*10
Delivery Time: 7-15 days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: Can produce 10 million sets of wire harnesses annually
Product Description

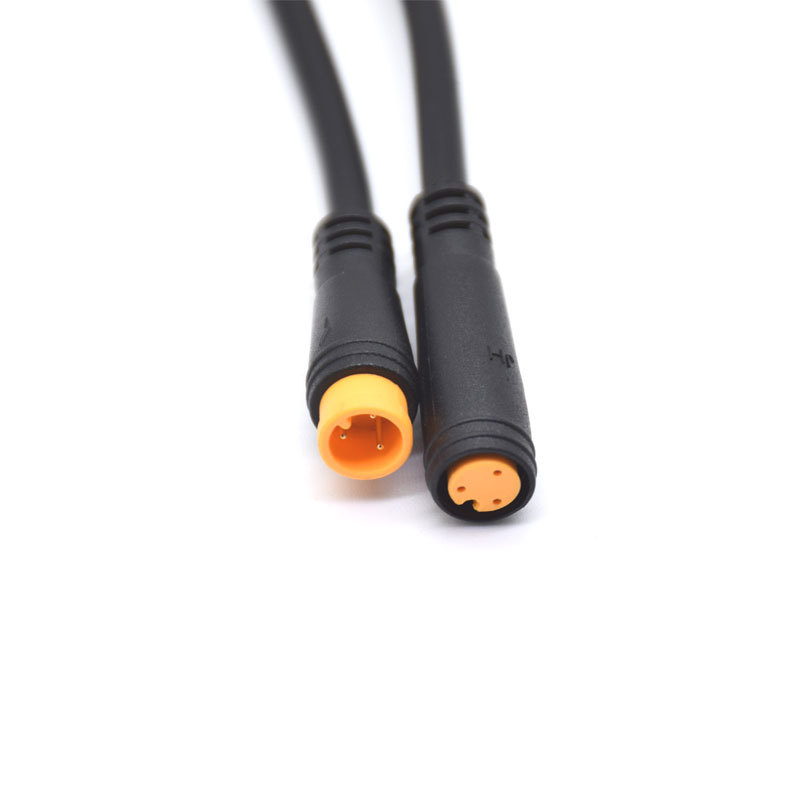

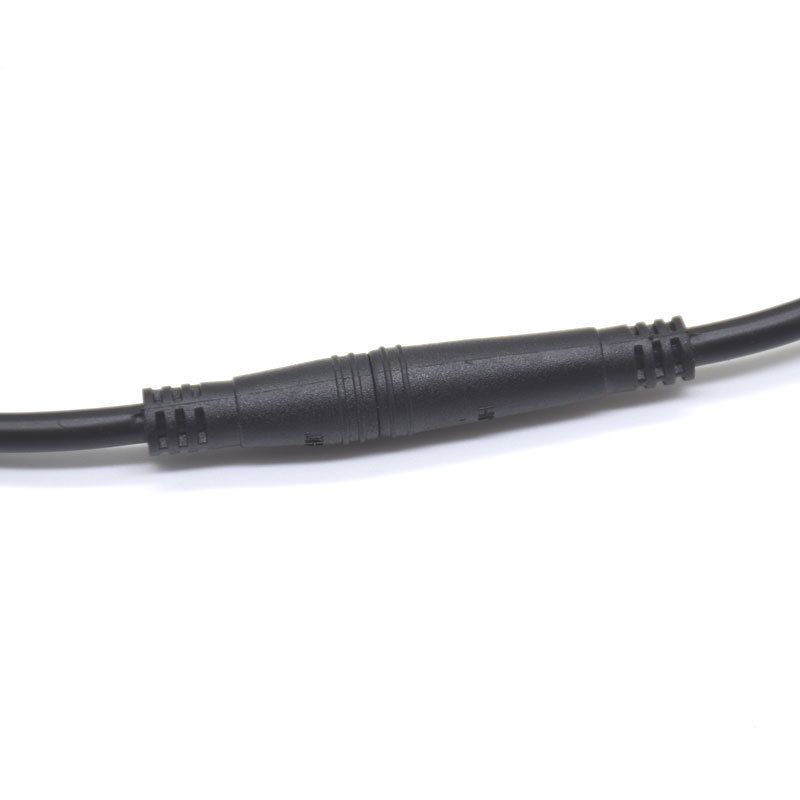

M8 3-Pin Waterproof Wire Harness
Engineered for extreme environments, the M8 3-Pin Waterproof Wire Harness delivers robust electrical connectivity with IP66-rated protection, ensuring reliability in industrial automation, automotive systems, outdoor lighting, and renewable energy applications.
Core Features
IP66 Waterproof & Dust-Tight Protection
  • Sealed with silicone rubber gaskets and stainless steel threads to block dust, water, and contaminants
  • Rated for submersion in 1.5 meters of water for 2 hours with full dust resistance
Extreme Temperature & Chemical Resilience
  • Operates in -40°C to +105°C (short-term surge up to +150°C)
  • Housing crafted from PA66+30%GF flame-retardant nylon (UL94 V-0 certified) for thermal stability and chemical immunity
Compact & Modular Design
  • Connector diameter: 8mm, optimized for tight spaces in machinery, robotics, or automotive panels
  • Lightweight (0.08kg/unit) for effortless installation and portability
High-Performance Electrical Specifications
  • Tinned copper contacts (0.5mm² cross-section) ensure low resistance (<0.2Ω) and corrosion resistance
  • Supports 4A continuous current and 60V AC/DC for stable power delivery
Customizable Configurations
  • Adjustable cable length (standard: 2 meters, extendable up to 10 meters)
  • Available in PVC or PUR insulation for adaptability to extreme climates
Technical Specifications
Parameter Specifications
Connector Type M8 3-Pin Waterproof (Male-Female)
Current Rating ≤4A
Voltage Rating 60V AC/DC
Wire Size ≤0.5mm² (20AWG)
Temperature Range -40°C to +105°C
IP Rating IP66
Certifications CE, RoHS, UL, IEC 60529
Cable Length Customizable (200mm-10m)
Weight 0.08kg (per unit)
Competitive Advantages
Military-Grade Durability
Reinforced stainless steel threads and silicone seals enable 5,000+ mating cycles without performance loss. Precision injection molding ensures ±0.05mm dimensional accuracy.
Versatile Application Support
Compatible with M8/M12/M16 series connectors for scalable systems. Ideal for industrial sensors, automotive battery systems, solar arrays, and outdoor LED lighting.
Rapid Customization Services
OEM/ODM options for logo, cable color, and terminal types available.
Ideal Use Cases
Industrial Automation: Robotics, PLCs, and machinery in factories (resists oil, dust, and moisture)
Automotive Systems: Battery connections, sensor wiring, and lighting in EVs and hybrids
Outdoor Infrastructure: Solar panel arrays, streetlights, and advertising displays (UV-resistant)
Renewable Energy: Wind turbine control systems and energy storage units
Agricultural Machinery: Tractor sensors, irrigation systems, and livestock monitoring
Why Choose This Product?
  • Unmatched Reliability: IP66-rated waterproofing ensures uninterrupted operation in rain, snow, or submerged conditions
  • Adaptive Design: Customizable cables and connectors tailor the product to unique project needs
  • Global Compliance: CE and RoHS certifications guarantee adherence to international safety standards
  • Extended Lifespan: PA66 housing and tinned copper contacts prolong service life by 5-10 years
