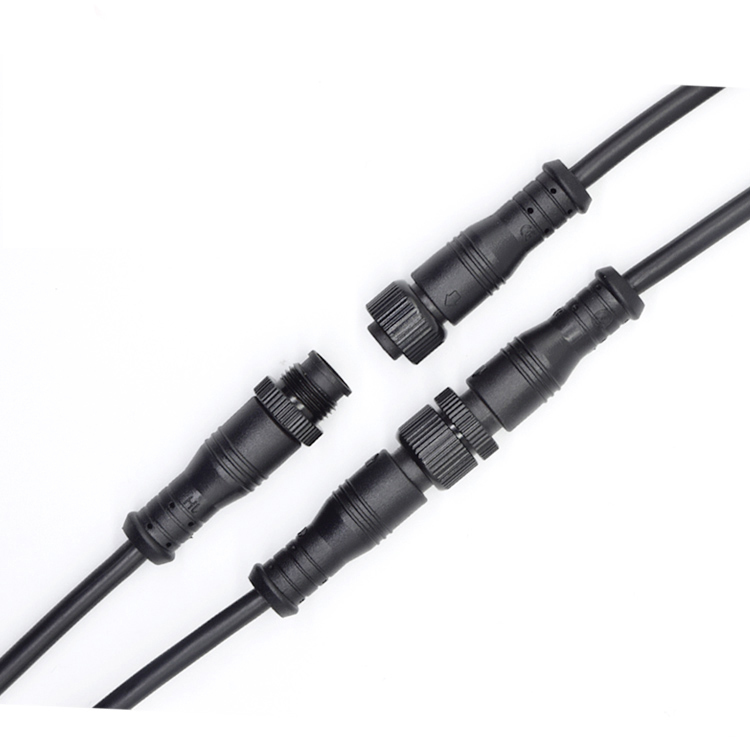

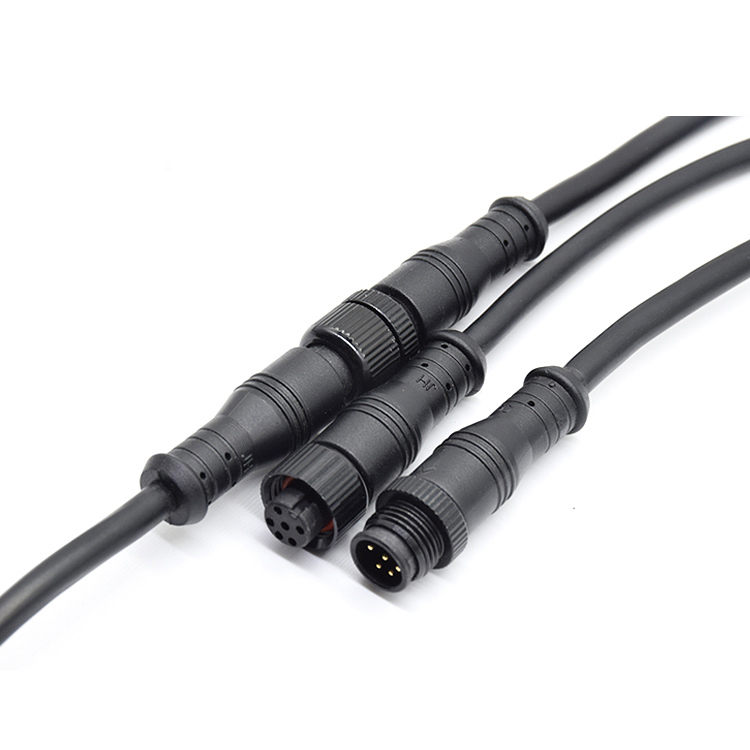

M12 Waterproof Connector Aviation Head Sensor Male to Female Extension Cable

100 sets
MOQ
0.3 USD -2 USD
Price
M12 Waterproof Connector Aviation Head Sensor Male to Female Extension Cable
Features Gallery Product Description Chat Now
Features
Specifications
Conductor Material: Pure Copper
Application: Streetlights
Insulation Material: PVC
Color: Black
Rated Voltage: 240v
Warranty: 3-year Warranty
Personalized Services: Supports OEM Or ODM
Highlight:

M12 waterproof connector aviation head

,

male to female extension cable Connector

,

waterproof sensor connector
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: kenhon
Certification: UL,CE certification
Model Number: M12 waterproof connector
Payment & Shipping Terms
Packaging Details: 10*10*10
Delivery Time: 7-15 days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: Can produce 10 million sets of wire harnesses annually
Product Description
M12 Waterproof Connector Aviation Head Sensor Male to Female Extension Cable
The M12 Waterproof Nylon Connector is engineered for industrial automation, automotive systems, and harsh environments, complying with IEC 61076-2-101 and EN 60529 standards. Featuring IP67/IP68 protection, this connector ensures reliable signal and power transmission in applications involving vibration, moisture, chemical exposure, and extreme temperatures. Its robust nylon PA66+GF construction and modular design make it ideal for sensors, actuators, and control systems in manufacturing, energy, and transportation sectors.
Key Features
Material & Durability
  • Housing: Reinforced nylon PA66+GF (30% glass fiber) for high mechanical strength and chemical resistance
  • Sealing Technology: EPDM rubber gaskets and O-ring seals achieve IP67/IP68 ratings (tested at 1.5m submersion for 2 hours)
  • Thread Locking: M12*1 threaded interface ensures secure connections under vibration
Electrical Performance
  • Voltage/Current: 60V/4A (max) with insulation resistance ≥100 MΩ
  • Contact Resistance: <3mΩ for minimal signal loss in high-frequency applications
  • Temperature Range: -40°C to +105°C (operating), -50°C to +125°C (storage)
Design Flexibility
  • Cable Compatibility: Supports AWG 24-28 cables (4-6mm diameter) with pre-attached or field-wiring options
  • Termination Types: Welding, screw clamping, or quick-lock mechanisms for rapid deployment
  • Pin Configuration: 2-8 pins (A/B/D/Coded) for flexible applications
Certifications & Compliance
CE, RoHS, UL, IEC 61800-5-2, and ISO 9001 certified. REACH-compliant for eco-friendly applications.
Applications
Industrial Automation: Sensor connections in robotic arms, CNC machines, and PLC systems
Transportation: Automotive lighting, EV charging ports, and battery management
Renewable Energy: Solar inverter monitoring and wind turbine control
Outdoor Equipment: LED street lighting, agricultural machinery, and marine electronics
Medical Devices: Waterproof connections for portable diagnostic equipment
Tag:

Male Female Cable Connector

Waterproof Plug

Waterproof Cable Connector
