Home /Products/Waterproof Plug/M8 5Pin Waterproof Plug IP65 E-Bike Male Female Wire 240V

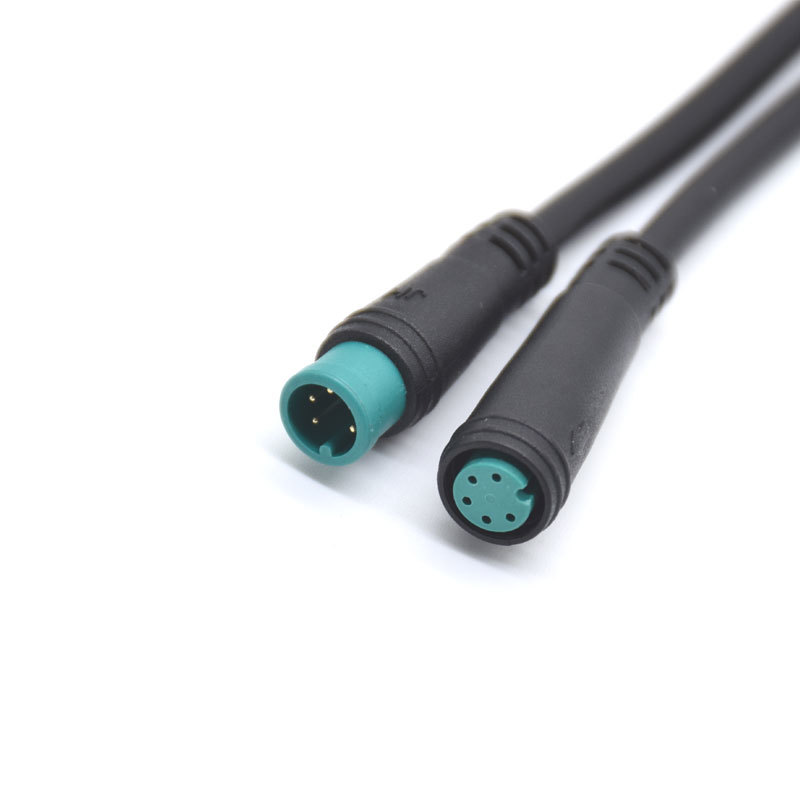

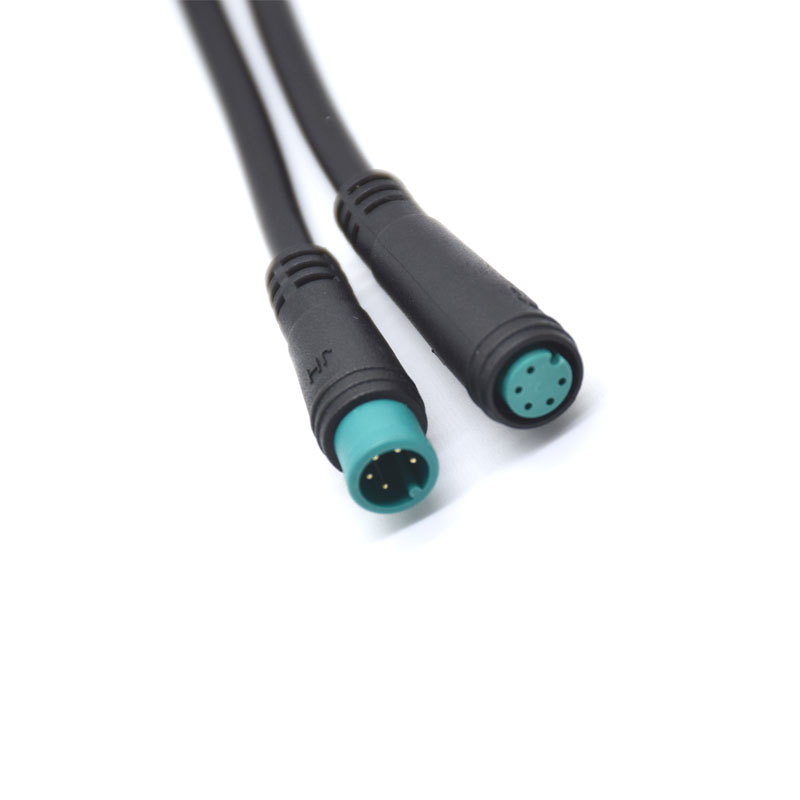

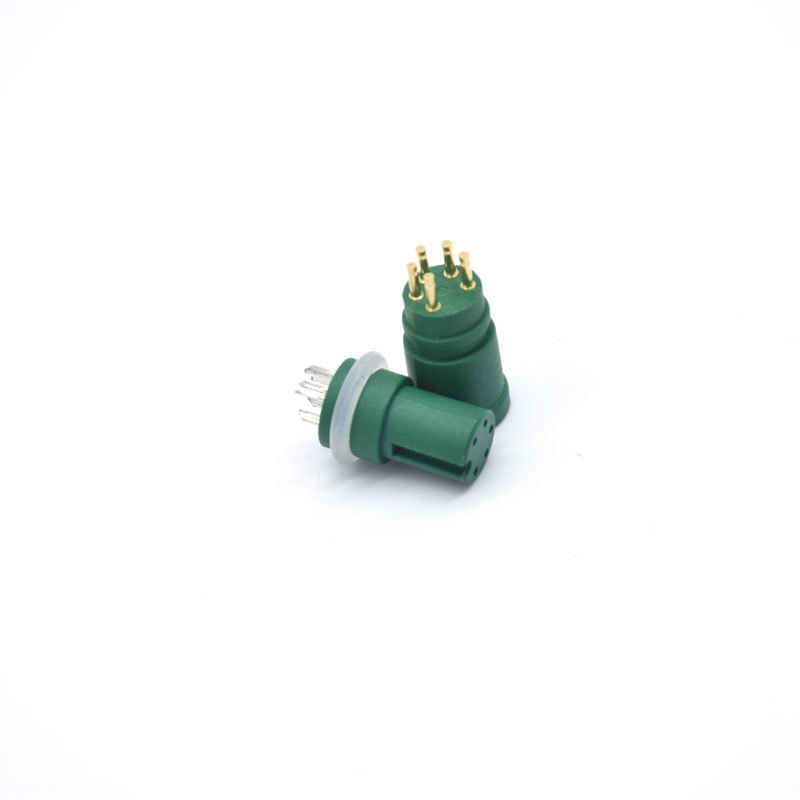

M8 5Pin Waterproof Plug IP65 E-Bike Male Female Wire 240V

100 sets
MOQ
0.3 USD -2 USD
Price
M8 5Pin Waterproof Plug IP65 E-Bike Male Female Wire 240V
Features Gallery Product Description Chat Now
Features
Specifications
Conductor Material: Pure Copper
Application: Toy Car
Insulation Material: Rubber Line
Color: Green
Rated Voltage: 240V
Warranty: 3-year Warranty
Personalized Services: Supports OEM Or ODM
Highlight:

waterproof plug M8 5Pin

,

e-bike waterproof wire connector

,

M8 waterproof power plug
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: kenhon
Certification: UL,CE certification
Model Number: Waterproof Plug M8 5Pin
Payment & Shipping Terms
Packaging Details: 10*10*10
Delivery Time: 7-15 days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: Can produce 10 million sets of wire harnesses annually
Product Description
Waterproof Plug M8 5Pin E-Bike Car Electric Wire Power Male Female Wire Bike Accessories Solder
Product Overview
The M8 Waterproof Connector (IP65) delivers robust performance for industrial and outdoor environments at a competitive cost. Ideal for applications exposed to moderate water exposure, dust, and mechanical stress, including outdoor infrastructure, agricultural equipment, and industrial automation systems.
Key Specifications
  • IP65 Protection: Withstands water jets up to 30 psi (6.3 m/s) at 0°/90° angles, complying with IEC 60529 standards
  • Dust Tightness: Fully sealed construction prevents dust ingress for sandy or gritty environments
  • Compact Design: 8mm diameter optimized for tight spaces in machinery and robotics
  • Lightweight: Only 0.08kg/unit for rapid deployment and ease of handling
  • Electrical Performance: Supports 1A continuous current at 24V AC/DC with tinned copper contacts ensuring <0.2Ω resistance
  • Customizable: Standard 2-meter cable length, extendable up to 10 meters with PVC or PUR jacket options
  • Easy Installation: Screw-locking mechanism ensures secure, tool-free connections
Technical Parameters
Parameter Specifications
Connector Type M8 5-Pin Waterproof (Male/Female)
Current Rating ≤4A
Voltage Rating 60V AC/DC
Wire Size ≤0.5mm² (20AWG)
Temperature Range -25°C to +85°C
IP Rating IP65
Certifications CE, RoHS, UL
Cable Length Customizable (200mm-10m)
Competitive Advantages
Budget-Friendly Protection Achieves IP65 compliance without compromising on durability
Broad Application Compatibility Compatible with M8/M12/M16 series connectors for scalable systems
Enhanced Durability Reinforced stainless steel threads and flame-retardant PA66 housing ensure longevity
Simplified Installation Threaded design ensures quick, tool-free connections
Ideal Applications
  • Outdoor Lighting Systems: Streetlights, billboards, and garden lighting exposed to rain or splashing water
  • Industrial Automation: Sensors, PLCs, and machinery in factories (resists oil, dust, and moisture)
  • Agricultural Machinery: Tractor sensors, irrigation systems, and livestock monitoring equipment
  • Electric Vehicles (EVs): Battery connections and low-voltage wiring in non-immersive EV components
  • Renewable Energy: Solar panel arrays and wind turbine control systems in moderately harsh environments
Why Choose This Product
  • Budget-friendly reliability with IP65 compliance
  • Simplified installation with threaded design
  • Global compliance with CE and RoHS certifications
  • Customizable flexibility for unique project needs
Tag:

Male Female Cable Connector

Waterproof Plug

Waterproof Cable Connector
