Home /Products/Fuse Box Wiring Harness/PVC Inline Blade car Fuse Box wiring Middle IP67 Waterproof

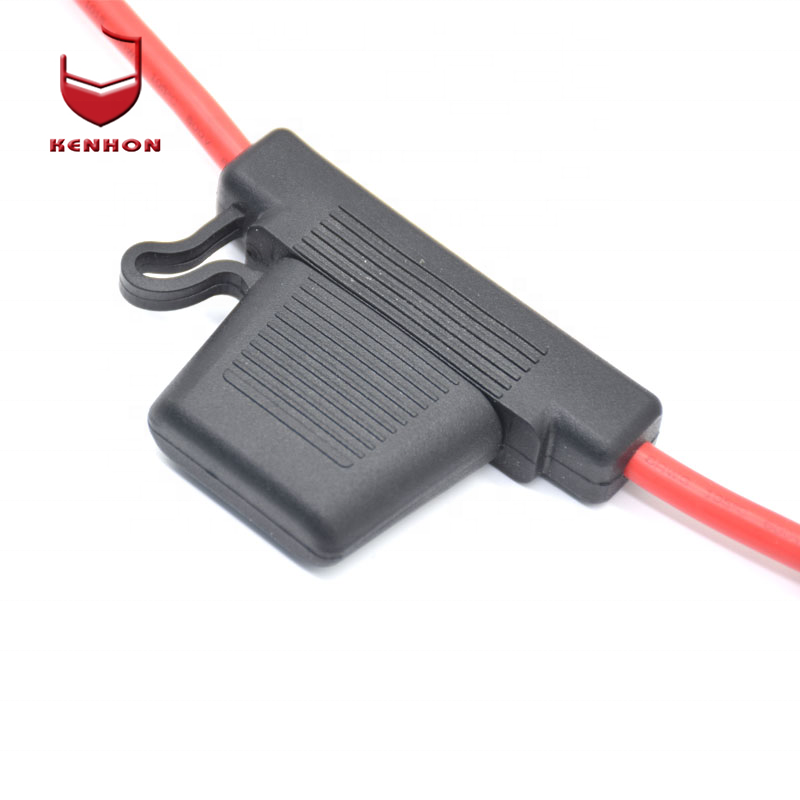

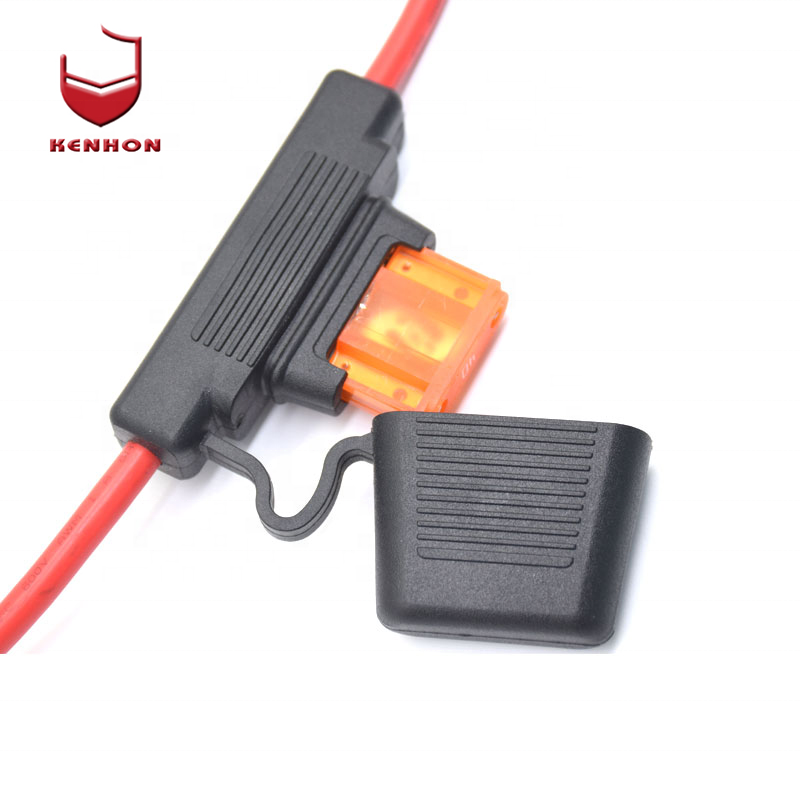

PVC Inline Blade car Fuse Box wiring Middle IP67 Waterproof

100 sets
MOQ
0.5 USD -5 USD
Price
PVC Inline Blade car Fuse Box wiring Middle IP67 Waterproof
Features Gallery Product Description Chat Now
Features
Specifications
Conductor Material: Copper Wire
Application: Gasoline Cars
Insulation Material: PVC
Color: Red
Rated Voltage: 450V
Warranty: 2-year Warranty
Personalized Services: Support OEM
Highlight:

IP67 car fuse box wiring

,

PVC inline blade fuse harness

,

Waterproof car fuse box wiring
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: kenhon
Certification: UL,CE certification
Model Number: Fuse box wiring harness
Payment & Shipping Terms
Packaging Details: 10*10*10
Delivery Time: 7-15 days
Payment Terms: L/C,D/P,T/T
Supply Ability: Can produce 10 million sets of wire harnesses annually
Product Description
Fuse Box Wiring Harness Middle Waterproof High Quality PVC Inline Blade
Specially designed for automotive, marine, and industrial systems, this advanced fuse box wiring harness delivers superior reliability and adaptive electrical connectivity. Serving as a direct OEM replacement or upgrade, it guarantees stable power distribution, overload safeguards, and adherence to international safety standards.
Core Innovations
Military-Grade Durability
  • Heat-Resistant Housing: PA66+30%GF flame-retardant material (UL94 V-2 certified) withstands extreme temperatures (-40°C to +150°C)
  • IP67 Waterproof Connectors: Molex/JST terminals with ±0.1mm precision crimping, rated for 10,000+ mating cycles
  • High-Conductivity Wiring: 10AWG-14AWG copper conductors (0.5-3.5mm²) lower resistivity by 60%, minimizing heat and energy loss
Smart Safety Systems
  • Integrated Circuit Protection: 100A-500A breakers and PPTC fuses prevent short circuits and overheating
  • EMI Defense: Aluminum foil + braided copper (attenuation >85dB) ensures EV/HEV compatibility
  • Quick-Install Design: Pre-terminated ends and color-coded terminals reduce installation time by 50%
Intelligent Monitoring
  • Real-Time Diagnostics: Embedded sensors track voltage, current, and temperature, sending alerts to the ECU
  • Flexible Configuration: Supports 5-15 fuses and relay modules, adaptable to H4, H13, and custom sockets
Technical Specifications
Fuse Capacity 5-15 fuses (10A-30A per circuit)
Voltage Range 12V/24V DC (upgradable to 72V for EV/HEV)
Temperature Range -40°C to +150°C (200°C short-term surge)
Conductor Resistance ≤0.08Ω/m (20°C)
Certifications UL 444, ISO 9001, RoHS, QS9000
Length Options 0.5-3m (customizable in 10cm increments)
Key Benefits
  • Cost Efficiency: AI-driven material optimization reduces waste by 18% and BOM costs by 12%
  • 7-Day Customization: Rapid production for bespoke designs (color, length, terminals)
  • Global Compatibility: 98% fitment for 2010-2025 vehicles, including Tesla Model 3 and Ford F-150
  • 24/7 Logistics: Same-day shipping from US, EU, and APAC warehouses
Application Highlights
  • OEM Integration: Pre-installed in EVs like BYD Han EV for adaptive fuse management
  • Aftermarket Upgrades: Converts halogen headlight systems to LED on trucks and classics
  • Extreme Environments: Operates in desert heat (50°C) or Arctic cold (-30°C)
  • Autonomous Vehicles: Seamless CAN bus integration for self-driving systems
Competitive Advantages
  • Quality Assurance: 100% in-process inspections (X-ray, Hi-Pot) + 3-stage validation
  • Sustainability: 90% recyclable materials and carbon-neutral shipping
  • Global Support: Multilingual technical assistance and 30-day warranty
Ideal For: Automotive OEMs, repair shops, EV manufacturers, and DIY enthusiasts prioritizing durability, safety, and scalability.
