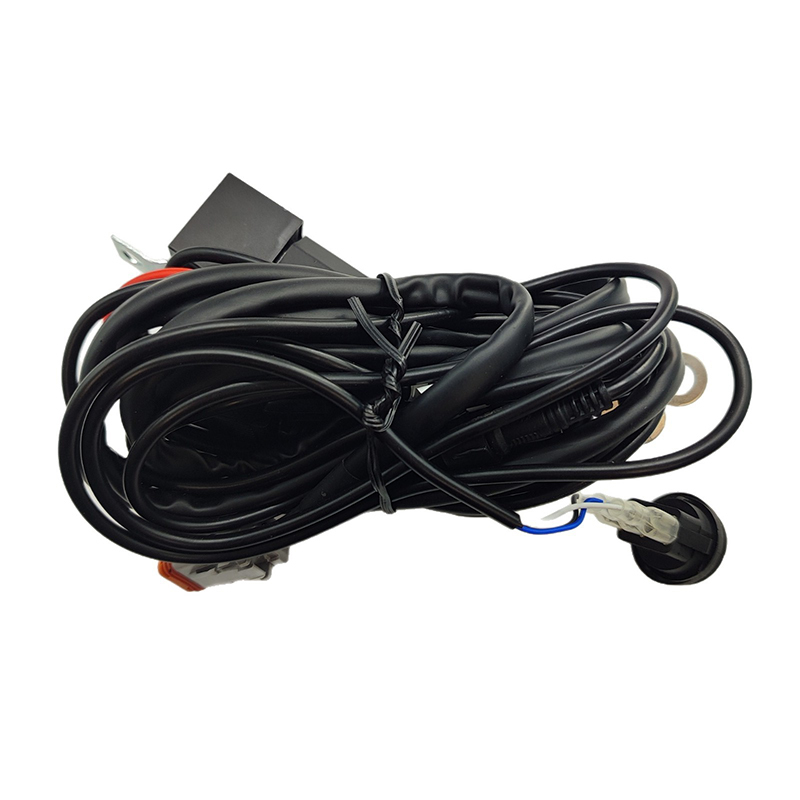

Male Female Automotive Wiring Harness Cat's Eye Switch Customized Shielded

100 sets
MOQ
5 USD -20 USD
Price
Male Female Automotive Wiring Harness Cat's Eye Switch Customized Shielded
Features Gallery Product Description Chat Now
Features
Specifications
Conductor Material: Pure Copper
Application: Automotive
Name: Male Female Automotive Wiring Harness Cat's Eye Switch Customized Shielded
Switch Type: SPST Rocker Switch, 3-Pin
Highlight:

customized automotive wiring harness

,

shielded auto wire harness

,

male female car wiring cable
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: kenhon
Certification: CE, RoHS, UL, ISO, BASEC，SAA
Model Number: Aus Power Cable
Payment & Shipping Terms
Packaging Details: 10*10*10
Delivery Time: 7-15 days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: Can produce 10 million sets of wire harnesses annually
Product Description
The Automotive Wiring Harness Cat's Eye Switch is an integrated electrical system combining a pre-assembled wiring harness with a distinctive circular rocker switch, designed for 12V/24V automotive, marine, and industrial applications. Named for its LED-illuminated "cat's eye" design, this product simplifies the installation of aftermarket accessories like fog lights, LED bars, winches, and auxiliary pumps.
Key Features & Benefits
High-Visibility LED Illumination
  • Circular rocker switch with multi-color LED options (red/blue/green/yellow) ensures clear status indication in low-light conditions
  • SPST configuration with simple ON/OFF operation and 3-pin layout for intuitive use
Durable Construction & Safety
  • IP67-rated waterproof connectors and seals prevent dust/moisture ingress
  • High-temperature resistance with PVC or XLPE insulation withstands -40°C to 85°C

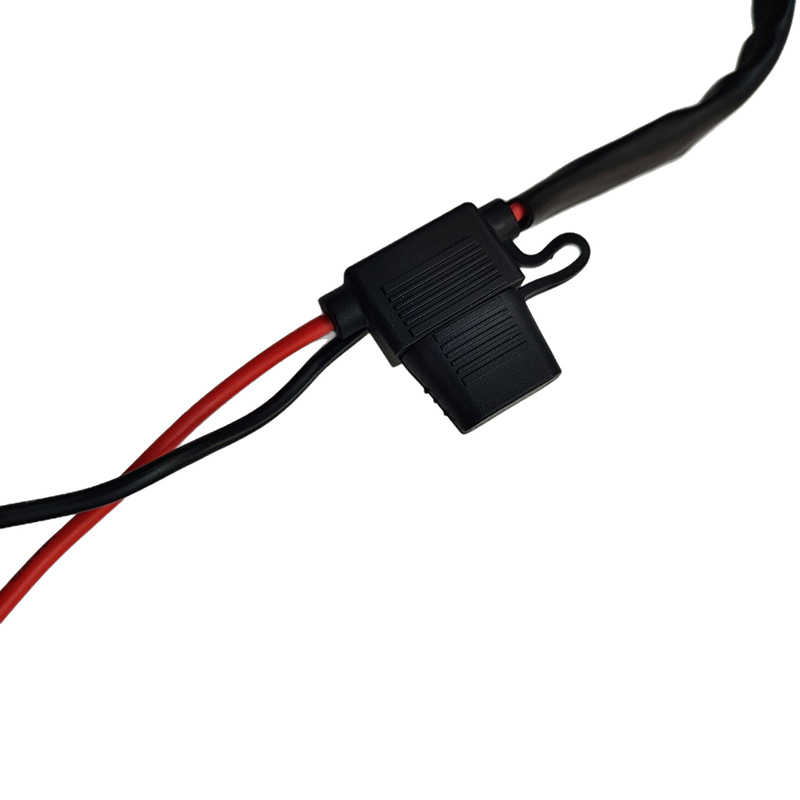

  • Integrated 40A relay and blade fuse prevent overloads, short circuits, and voltage spikes
Plug-and-Play Installation
  • Pre-terminated harness with color-coded wires reduces installation time by 50%
  • Universal compatibility with 12V/24V systems and standard connectors
Customizable Options
  • Standard 3m harness extendable to 10m with 14-16 AWG copper wires
  • OEM/ODM services available for custom logos, switch colors, and harness lengths
Technical Specifications
Product Name Automotive Wiring Harness Cat's Eye Switch
Switch Type SPST Rocker Switch, 3-Pin
Rated Voltage/Current 12V/24V DC, 20A (max)
LED Indicators Red, Blue, Green, Yellow (optional)
Wire Gauge 14-16 AWG (1.5-2.5mm²) tinned copper conductors
Insulation Material PVC/XLPE (flame-retardant, UL94 V-0)
IP Rating IP67 (connectors and switch)
Temperature Range -40°C to 85°C (operating)
Harness Length 3m standard (customizable 0.5-10m)
Certifications RoHS, UL, ISO 19642 (automotive-grade)
Competitive Advantages
Reliability: Automotive-grade components withstand 10,000+ actuation cycles with vibration-resistant terminals per USCAR-2 standards

Rapid Deployment: No tools required for installation; adhesive-backed switch mounts and color-coded wiring enable sub-15-minute setup
Applications
Off-Road Vehicles: LED light bars, winches, and auxiliary pumps
Marine Use: Bilge pumps, navigation lights, and fish finders
Commercial Vehicles: Snow plows, work lamps, and PTO systems
Emergency Equipment: Warning lights and sirens for utility vehicles
Why Choose This Product
  • Safety assurance with fuse and relay protection complying with ISO 19642 safety standards
  • Durability with IP67 waterproofing and high-temperature materials ensuring 5+ year lifespan
  • Global compliance with RoHS and UL certifications for international shipping
Engineered for reliability—simplify your electrical upgrades with the Cat's Eye Switch Harness.
