Drip Switch Auto Wiring Harness Dust Resistant Pure Copper Conductor Material

100 sets
MOQ
5 USD -20 USD
Price
Drip Switch Auto Wiring Harness Dust Resistant Pure Copper Conductor Material
Features Gallery Product Description Chat Now
Features
Specifications
Conductor Material: Pure Copper
Application: Sliding Door System
Insulation Material: Nylon Thread
Color: Black
Rated Voltage: 1500V
Warranty: 3-year Warranty
Personalized Services: ODM
Highlight:

Drip Switch Auto Wiring Harness

,

Auto Wiring Harness Dust Resistant

,

Pure Copper Conductor car wiring cable
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: kenhon
Certification: CE, RoHS, UL, ISO, BASEC，SAA
Model Number: Aus Power Cable
Payment & Shipping Terms
Packaging Details: 10*10*10
Delivery Time: 7-15 days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: Can produce 10 million sets of wire harnesses annually
Product Description

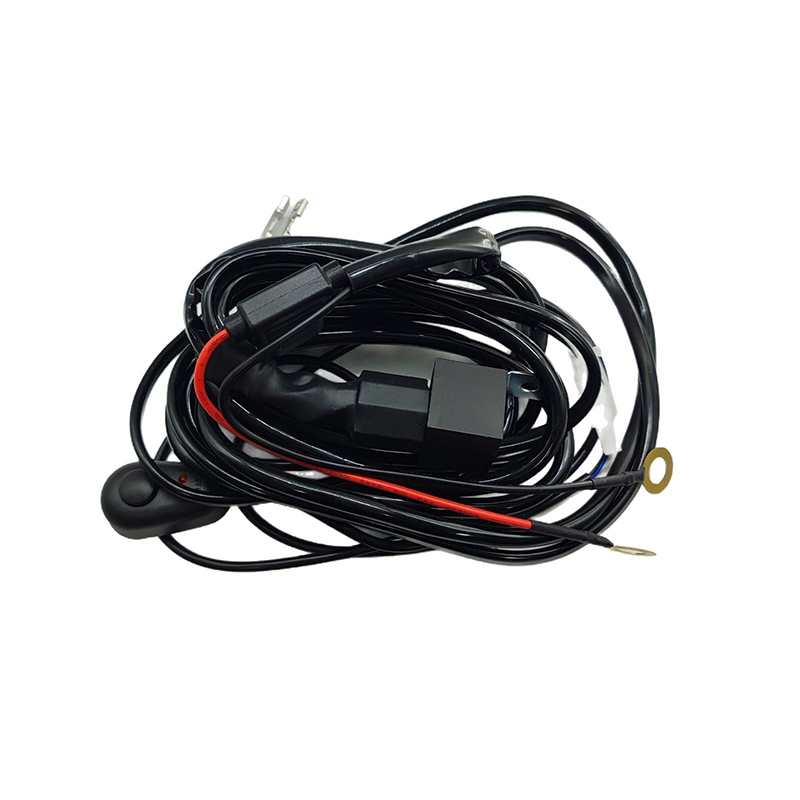

Automotive Drip-Proof Switch Wiring Harness
Engineered to deliver unwavering reliability in moist, dusty, and high-vibration settings, the Automotive Drip-Proof Switch Wiring Harness integrates a rugged wiring harness with a drip-proof switch design. It guarantees stable performance in challenging applications—such as engine compartments, sliding door systems, and underbody installations—where standard switches are prone to failure.
Key Features & Technical Advantages
Drip-Proof & Dust-Resistant Construction
  • Rubber Boot Sealing: Integrated rubber boot protects the actuator from water, oil, and dust
  • Adhesive-Sealed Housing: Switch case and cover sealed with adhesive resin for enhanced resistance
High-Capacity Switching Performance
  • 15A Rating: Supports high-current applications like automotive lighting and motors
  • Versatile Contact Options: Available in standard, split-contact, and maintained-contact configurations
Durable & Safe Design
  • Flame-Retardant Materials: UL94 V-0 compliant nylon or PVC insulation and housing
  • Corrosion-Resistant Terminals: Brass or tin-plated copper contacts prevent oxidation
Easy Installation & Broad Compatibility
  • Pre-Assembled Harness: Color-coded wires and pre-crimped terminals reduce installation time by up to 50%
  • Universal Compatibility: Works with 12V/24V automotive systems and standard connectors
Extended Service Life
  • High-Strength Wires: Aluminum alloy or copper conductors withstand vibrations
  • Wide Temperature Range: Operates reliably from -40°C to +85°C
Technical Specifications
Parameter Specifications
Product Name Automotive Drip-Proof Switch Wiring Harness
Switch Type Basic Switch with Drip-Proof Actuator (e.g., OMRON Z-Series)
Rated Voltage/Current 12V/24V DC, 15A max
Contact Configuration SPST/SPDT, Split-Contact, or Maintained-Contact options
Contact Gap 0.25mm (high-sensitivity) to 1.8mm (high-capacity)
Insulation Material Flame-retardant Nylon/PVC (UL94 V-0)
IP Rating Drip-Proof (equivalent to IP54)
Wire Gauge 16-14 AWG (1.5-2.5mm²) tinned copper or aluminum alloy
Temperature Range -40°C to +85°C
Harness Length Customizable (0.5-5 meters)
Certifications RoHS, UL, ISO 9001/16949 (automotive-grade)
Competitive Advantages
  • Superior Environmental Protection: Drip-proof design reduces failure rates by up to 30% in moisture-prone areas
  • Lightweight Efficiency: Aluminum alloy wiring reduces harness weight by 20-30%
  • Rapid Deployment: Pre-wired harnesses with quick-disconnect plugs allow tool-free installation
Applications
Automotive Systems: Engine control units, sliding door mechanisms, electric parking brakes (EPB), and lighting systems
Industrial Machinery: Equipment exposed to coolants, dust, or outdoor weather conditions
Marine and RV Use: Bilge pumps, navigation lights, and HVAC controls where moisture resistance is essential
Aftermarket Upgrades: Retrofit kits for fog lights, winches, or auxiliary pumps in off-road vehicles
Why Choose This Product?
Reliability: Drip-proof sealing and 15A capacity ensure consistent operation in harsh settings
Global Compliance: Meets UL, RoHS, and ISO standards for international market acceptance
Customization Flexibility: Adaptable designs cater to specific voltage, spatial, or connector needs
Longevity: High-temperature materials and corrosion-resistant parts extend service life to 5+ years
