OEM Illumination Automotive Wiring Harness Drip Switch 4Pin with PVC Insulation

100 sets
MOQ
5 USD -20 USD
Price
OEM Illumination Automotive Wiring Harness Drip Switch 4Pin with PVC Insulation
Features Gallery Product Description Chat Now
Features
Specifications
Conductor Material: Pure Copper
Switch Type: Basic Switch With Drip-Proof Actuator
Rated Voltage/Current: 12V/24V DC, 15A Max
Insulation Material: Flame-retardant Nylon/PVC (UL94 V-0)
Highlight:

4Pin Automotive Wiring Harness

,

OEM illumination wire harness

,

PVC insulation wiring harness
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: kenhon
Certification: CE, RoHS, UL, ISO, BASEC，SAA
Model Number: Aus Power Cable
Payment & Shipping Terms
Packaging Details: 10*10*10
Delivery Time: 7-15 days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: Can produce 10 million sets of wire harnesses annually
Product Description

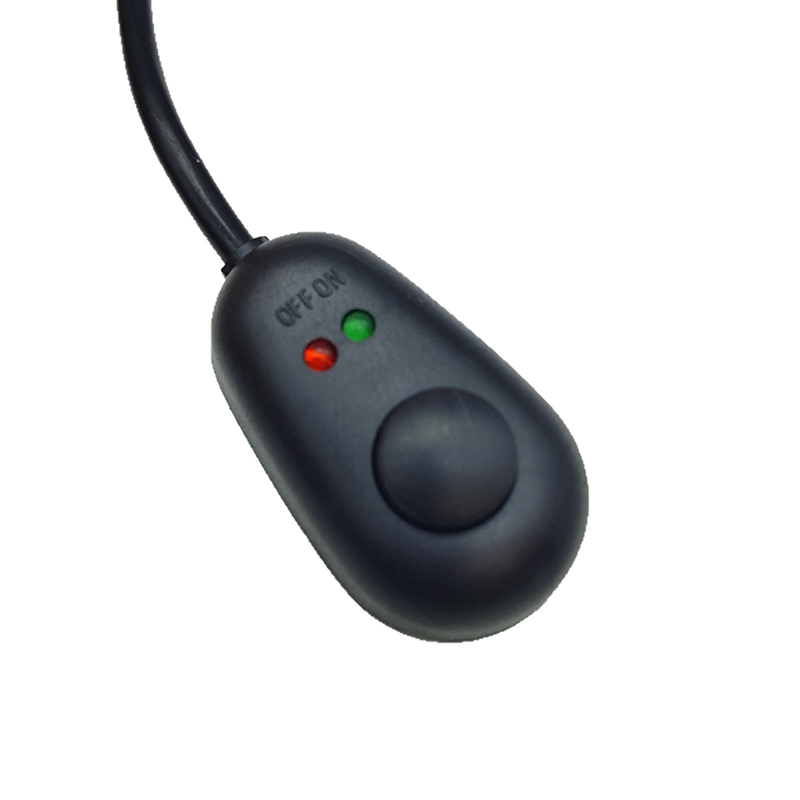

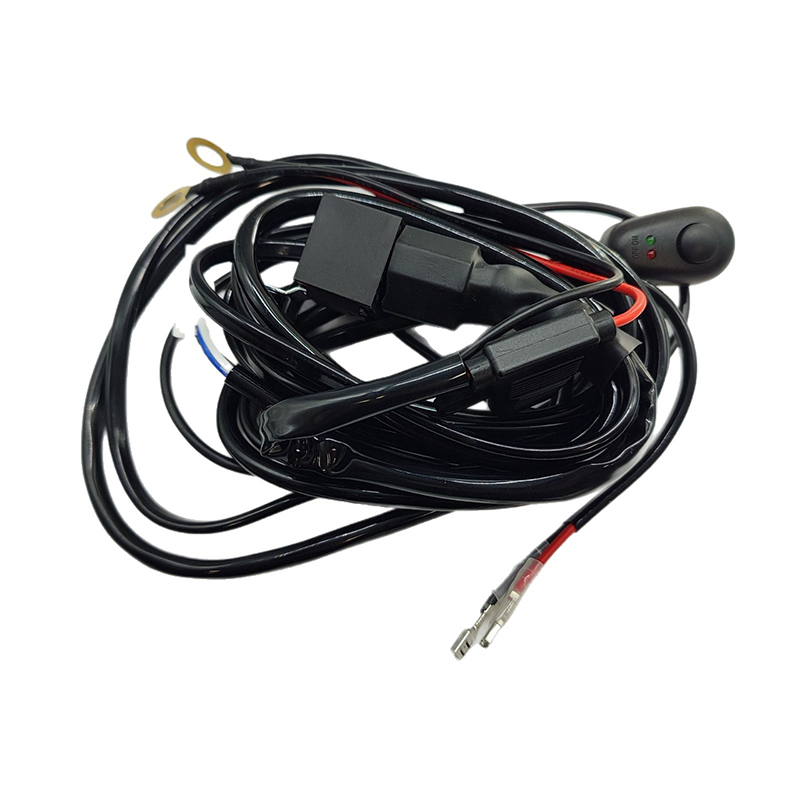

Automotive Wiring Harness Drip Switch
Factory OEM 4Pin Automotive Switch Illumination Wire Harness with PVC Insulation
Engineered to deliver consistent performance in moist, dusty, and high-vibration conditions, the Automotive Drip-Proof Switch Wiring Harness integrates a rugged wiring assembly with a drip-resistant switch design. It ensures stable operation in demanding applications such as engine compartments, underbody installations, and sliding door systems where conventional switches often fail.
Key Features & Technical Advantages
Drip-Proof & Dust-Resistant Construction
  • Rubber boot sealing protects the actuator from water, oil, and dust
  • Adhesive-sealed housing enhances resistance against drips and contaminants
High-Capacity Switching Performance
  • 15A rating supports high-current applications like automotive lighting and motors
  • Versatile contact options including standard, split-contact, and maintained-contact configurations
Durable & Safe Design
  • Flame-retardant materials comply with UL94 V-0 fire safety standards
  • Corrosion-resistant brass or tin-plated copper contacts minimize resistance
Easy Installation & Broad Compatibility
  • Pre-assembled harness with color-coded wires reduces installation time by up to 50%
  • Universal compatibility with 12V/24V automotive systems and standard connectors
Extended Service Life
  • High-strength wires withstand vibrations in demanding applications
  • Wide operating temperature range from -40°C to +85°C
Technical Specifications
Parameter Specifications
Product Name Automotive Drip-Proof Switch Wiring Harness
Switch Type Basic Switch with Drip-Proof Actuator
Rated Voltage/Current 12V/24V DC, 15A max
Contact Configuration SPST/SPDT, Split-Contact, or Maintained-Contact options
Contact Gap 0.25mm to 1.8mm
Insulation Material Flame-retardant Nylon/PVC (UL94 V-0)
IP Rating Drip-Proof (equivalent to IP54)
Wire Gauge 16-14 AWG (1.5-2.5mm²) tinned copper or aluminum alloy
Temperature Range -40°C to +85°C
Harness Length Customizable (0.5-5 meters)
Certifications RoHS, UL, ISO 9001/16949
Competitive Advantages
• Superior environmental protection reduces failure rates by up to 30% in moisture-prone areas
• Lightweight aluminum alloy wiring cuts harness weight by 20-30%
• Pre-wired harnesses with quick-disconnect plugs enable tool-free installation
Applications
Automotive Systems
Industrial Machinery
Marine and RV Use
Aftermarket Upgrades
Why Choose This Product?
  • Reliability: Drip-proof sealing and 15A capacity ensure consistent operation in harsh settings
  • Global Compliance: Meets UL, RoHS, and ISO standards for international market acceptance
  • Customization Flexibility: Adaptable designs cater to specific voltage, spatial, or connector needs
  • Longevity: High-temperature materials and corrosion-resistant components extend service life to 5+ years
Tag:

automotive wiring harness

auto wire harness

male female car wiring cable
