Electrical Auto Wiring Harness Cat'S Eye Switch Auto Engine Wire Harness 1300V

100 sets
MOQ
5 USD -20 USD
Price
Electrical Auto Wiring Harness Cat'S Eye Switch Auto Engine Wire Harness 1300V
Features Gallery Product Description Chat Now
Features
Specifications
Conductor Material: Pure Copper
Application: New Energy Vehicles
Insulation Material: Teflon Wire
Color: Black
Rated Voltage: 1300V
Warranty: 3-year Warranty
Personalized Services: OEM
Name: Electrical Auto Wiring Harness
Highlight:

Auto Engine Wire Harness 1300V

,

car control engine wiring harness

,

Cat'S Eye Switch Auto Wiring Harness
Basic Infomation
Place of Origin: Shenzhen, Guangdong, China
Brand Name: kenhon
Certification: CE, RoHS, UL, ISO, BASEC，SAA
Model Number: Aus Power Cable
Payment & Shipping Terms
Packaging Details: 10*10*10
Delivery Time: 7-15 days
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: Can produce 10 million sets of wire harnesses annually
Product Description

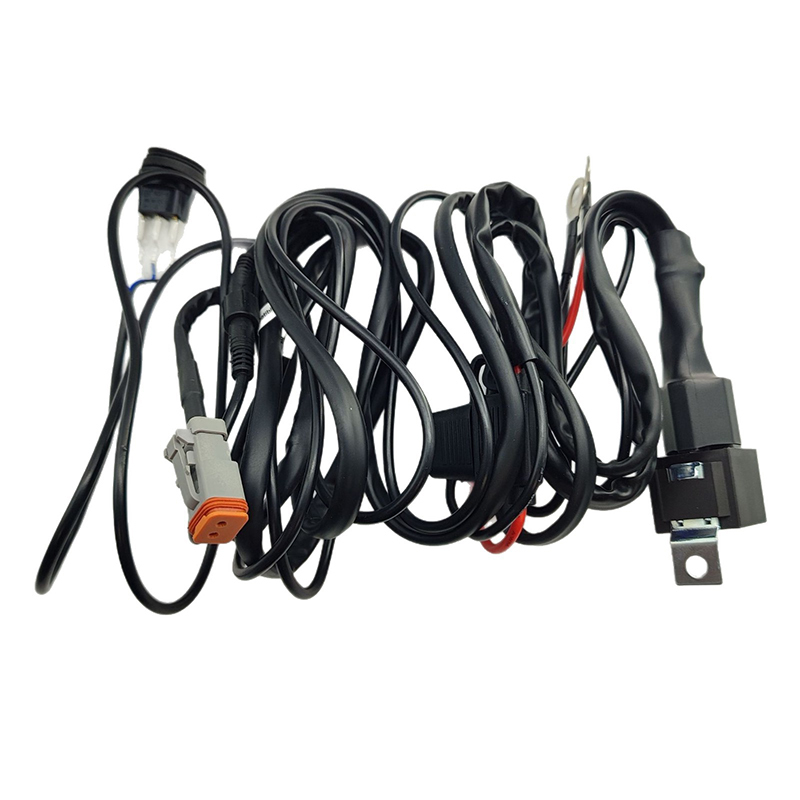

Automotive Cat's Eye Switch Wiring Harness
This integrated electrical solution features a circular rocker switch with LED illumination, engineered for 12V/24V automotive, marine, and industrial applications. The signature "cat's eye" design provides clear visual feedback in low-light environments, while relay-protected circuits, IP67-rated waterproof connectors, and flame-retardant insulation ensure reliable performance in harsh conditions.
Key Features & Technical Advantages
High-Visibility LED Illumination
  • Cat's Eye Switch: Circular rocker switch with multi-color LED options (red/blue/green/yellow) for clear status indication in darkness
  • SPST Configuration: Simple ON/OFF operation with 3-pin layout for intuitive use
Durable Construction & Safety
  • Waterproof Protection: IP67-rated connectors and seals prevent dust and moisture ingress
  • High-Temperature Resistance: PVC or XLPE insulation withstands -40°C to 85°C
  • Circuit Protection: Integrated 40A relay and blade fuse safeguard against electrical faults
Plug-and-Play Installation
  • Pre-Terminated Harness: Color-coded wires and pre-crimped terminals reduce installation time by 50%
  • Universal Compatibility: Works with 12V/24V systems and standard connectors
Customizable Options
  • Wire Length & Gauge: Standard 3m harness (extendable to 10m) with 14-16 AWG tinned copper wires
  • OEM/ODM Services: Custom logos, switch colors, and harness lengths available for bulk orders
Technical Specifications
Parameter Specifications
Product Name Automotive Cat's Eye Switch Wiring Harness
Switch Type SPST Rocker Switch, 3-Pin
Rated Voltage/Current 12V/24V DC, 20A (max)
LED Indicators Red, Blue, Green, Yellow (optional)
Wire Gauge 14-16 AWG (1.5-2.5mm²) tinned copper conductors
Insulation Material PVC/XLPE (flame-retardant, UL94 V-0)
IP Rating IP67 (connectors and switch)
Temperature Range -40°C to 85°C (operating)
Harness Length 3m standard (customizable 0.5-10m)
Certifications RoHS, UL, ISO 19642 (automotive-grade)
Competitive Advantages
  • Reliability: Automotive-grade components endure 10,000+ actuation cycles; vibration-resistant terminals comply with USCAR-2 standards
  • Rapid Deployment: Tool-free installation with adhesive-backed switch mounts enables setup in under 15 minutes
Applications
Off-Road Vehicles: LED light bars, winches, and auxiliary pumps
Marine Use: Bilge pumps, navigation lights, and fish finders
Commercial Vehicles: Snow plows, work lamps, and PTO systems
Emergency Equipment: Warning lights and sirens for utility vehicles
Why Choose This Product?
Safety Assurance: Fuse and relay protection prevents electrical failures, complying with ISO 19642 safety standards
Durability: IP67 waterproofing and high-temperature materials ensure a lifespan of 5+ years
Global Compliance: RoHS and UL certifications simplify international distribution
Tag:

automotive wiring harness

auto wire harness

male female car wiring cable
