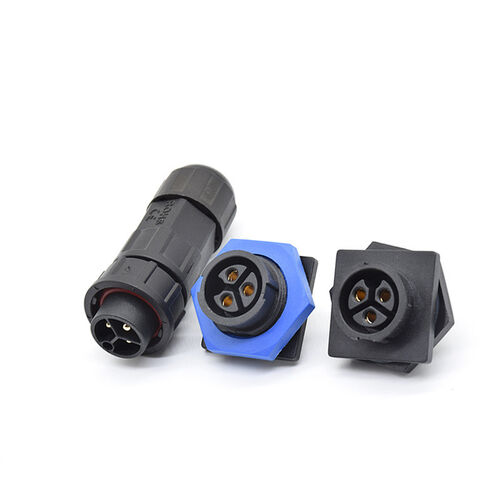

In heavy machinery, new energy equipment, and large-scale industrial deployments, connecting large cables often presents significant challenges: prefabricated cables may be of incompatible lengths, large connectors struggle to fit through narrow cable trays, and changing connection methods on-site after equipment has left the factory is extremely costly. The M21 assembly plug is a heavy-duty connection solution designed to address these field challenges. It transcends traditional welding or crimping methods, with its core advantage being "rapid on-site assembly." It provides engineers with unprecedented flexibility and reliability when dealing with large-section cables (e.g., 16mm² and above) and high-current applications, representing an "engineering art" of achieving reliable electrical connections in high-power, harsh environments.

Core Advantages of the Product

The design philosophy of the M21 assembly plug lies in "transferring" factory-grade connection quality to the construction site.

1. Unparalleled Field Adaptability

Its greatest appeal lies in its "assembly" characteristic. The plug's core components (such as insulators, contacts, sealing units, and housings) are fully disassembled, allowing engineers to cut cables to any length on-site for direct termination. This completely solves the problem of cable length mismatch caused by equipment layout changes, insufficient wiring redundancy, or sudden maintenance, avoiding intermediate joints and shortening project cycles.

2. Electrical and Mechanical Optimization for Heavy-Duty Applications

The M21 connector is designed for high current and high voltage. Its large metal housing (such as nickel-plated brass or stainless steel) and internal structure accommodate large crimp terminals or screw terminals, stably carrying continuous currents up to 63A or even higher. Robust threads and a robust snap/bolt locking mechanism provide excellent vibration resistance and anti-loosening performance, fully meeting the needs of mobile or high-vibration scenarios such as engineering machinery and energy equipment.

3. Uncompromising Industrial-Grade Protection

Despite field assembly, its protection level remains uncompromised. Through a precise combination of radial and axial seals and a tight fit between the cable clamping unit and the housing, IP67, IP68, and even IP69K protection ratings can be easily achieved, resisting dust, high-pressure water jets, oil stains, and short-term immersion, ensuring long-term stability in extreme environments such as mines, ports, and outdoor power plants.

Core Application Scenarios: The M21 assembly plug is the connection point for the "energy arteries" of large equipment and fixed installations:

New Energy and Energy Storage: High-power input/output connections for the DC side of photovoltaic inverters, energy storage battery packs (PACKs), and charging piles.
Heavy Construction Machinery: Power supply for motors, main control cabinets, and high-power lighting systems in excavators, cranes, and mining trucks.
Industrial Power Distribution: Power input and output connections for large frequency converters, servo drives, and distribution boxes.
Rail Transportation and Ships: Power connections between carriages, power supply for deck equipment, and shore power system interfaces.

Key Assembly and Usage Tips: The ease of on-site assembly must be combined with professional operating procedures to ensure ultimate reliability.

1. Standardized Assembly Process (Golden Rule)

Preparation and Stripping: Use specialized stripping tools to precisely strip the cable's outer sheath and core insulation to the specified length, ensuring no damage to the conductor. For multi-strand wires, apply appropriate twisting.
Termination: If using crimp terminals, use appropriate cross-sectional area dies and hydraulic/manual crimping pliers to ensure a secure and correctly shaped crimp. If using screw terminals, ensure the conductor is fully inserted and tighten to the recommended torque.
Sequential Assembly: Strictly follow the "inside-out" sequence: insert the rear nut, clamping unit, and seal in sequence → process the conductor and install the contacts → insert the contacts into the insulation → insert the entire assembly into the housing → install the seal and clamping unit from the other end in sequence and tighten. Ensure each component is in place and level at each step.
Waterproof Core: Ensure all sealing rings (cable seals, interface seals) are clean, in place, and free from twisting. Selecting or adjusting the sealing rings according to the cable's outer diameter is crucial for achieving IP protection.

2. Key Installation and Maintenance Points

Torque Control: Tighten the connector nuts/bolts using a torque wrench, following the manufacturer's specifications (e.g., the tightening torque for the M21 metal housin
